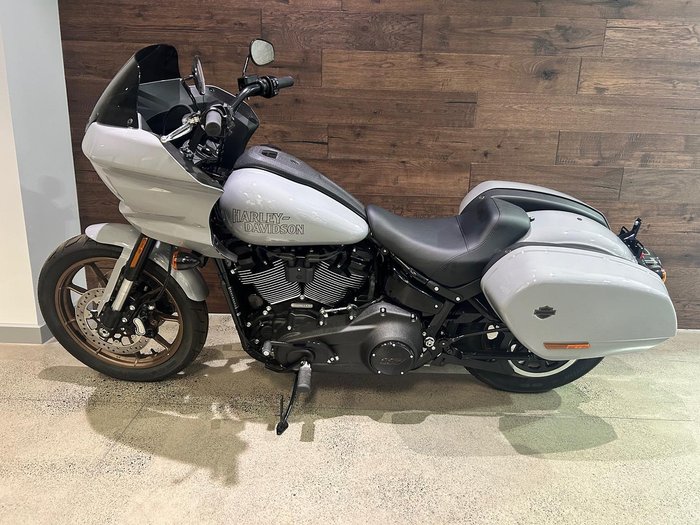

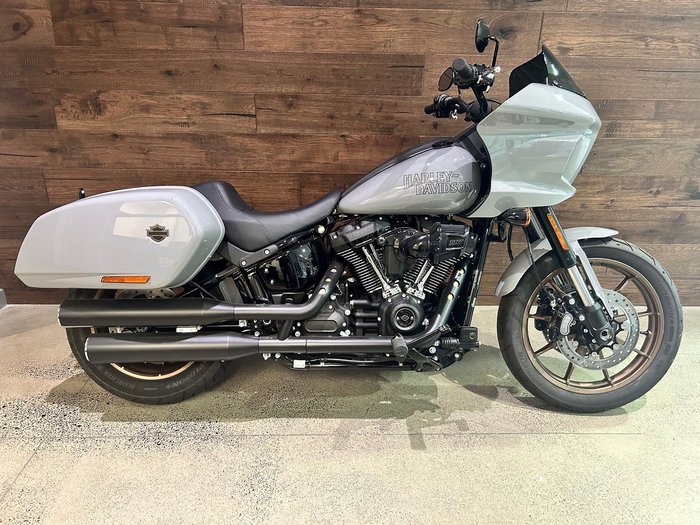

2024 Harley-Davidson LOW Rider ST 117 (fxlrst) Softail

Features

• EngineSize: 1923
• EngineType: Piston
• FuelCapacity: 18.9
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Cruiser (1201 - 10000cc)
• Engine Config: V-Twin
• Engine Stroke: 4
• Bore: 103.5mm
• Stroke: 114.3mm
• Cam Type: OHV (Over Head Valves)
• Valves Per Cylinder: 4
• Compression Ratio: 10.2:1
• Induction System: Aspirated
• Carburettor: ESPFI - Electronic Sequential Port Fuel Injection
• Cooling: Air
• Exhaust Description: 2-into-2 offset shotgun; catalyst in muffler
• Maximum Power: 76.8kW
• Maximum Power RPM: 5020
• Maximum Torque: 167Nm
• Maximum Torque RPM: 3500
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Alternator & Regulator-Rectifier
• Recommended RON: 95
• Gear Change Method: Left foot lever
• Clutch Type: Wet; 10-plate; Mechanical/cable operation; Assist
• Side Stand: Standard
• Front Suspension: Upside down/Inverted single cartridge telescopic fork
• Front Suspension Travel: 130.0mm
• Rear Suspension: Hidden; Free piston coil-over monoshock; Hydraulic preload adjustment
• Rear Suspension Travel: 112.0mm
• Swingarm Type: Dual Sided
• Front Brake Description: Twin discs; Hydraulic; Fixed; ABS
• Front Brake Caliper(s): Four Piston
• Rear Brake Description: Single Disc; Hydraulic; Fixed; ABS
• Rear Brake Caliper(s): Double Piston
• ABS: Standard
• Wheel Type: Dark bronze; Radiate cast aluminum wheel
• Wheel Size Front: 2.5x19"
• Wheel Size Rear: 5.0x16"
• Rear Tyre: 180/70-B16" 77H Michelin Scorcher
• Front Tyre: 110/90-B19" 62H Michelin Scorcher
• Length: 2365mm
• Wheelbase: 1615mm
• Wet / Operational Weight: 327.0kg
• Seat Height: 720mm
• Traction Control: Standard
• Instruments / Dash Description: 2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
• Windscreen: Optional

_{Please confirm all features with dealer.}
