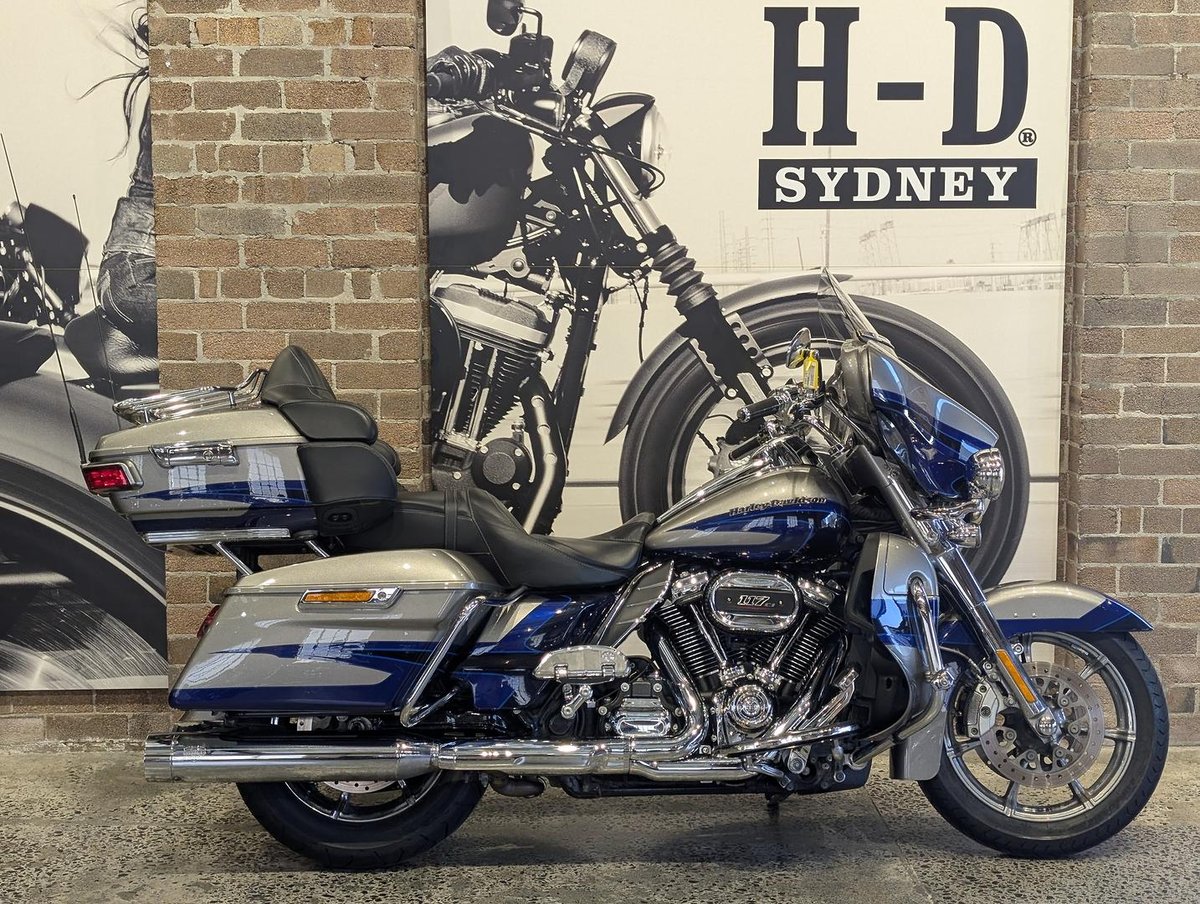

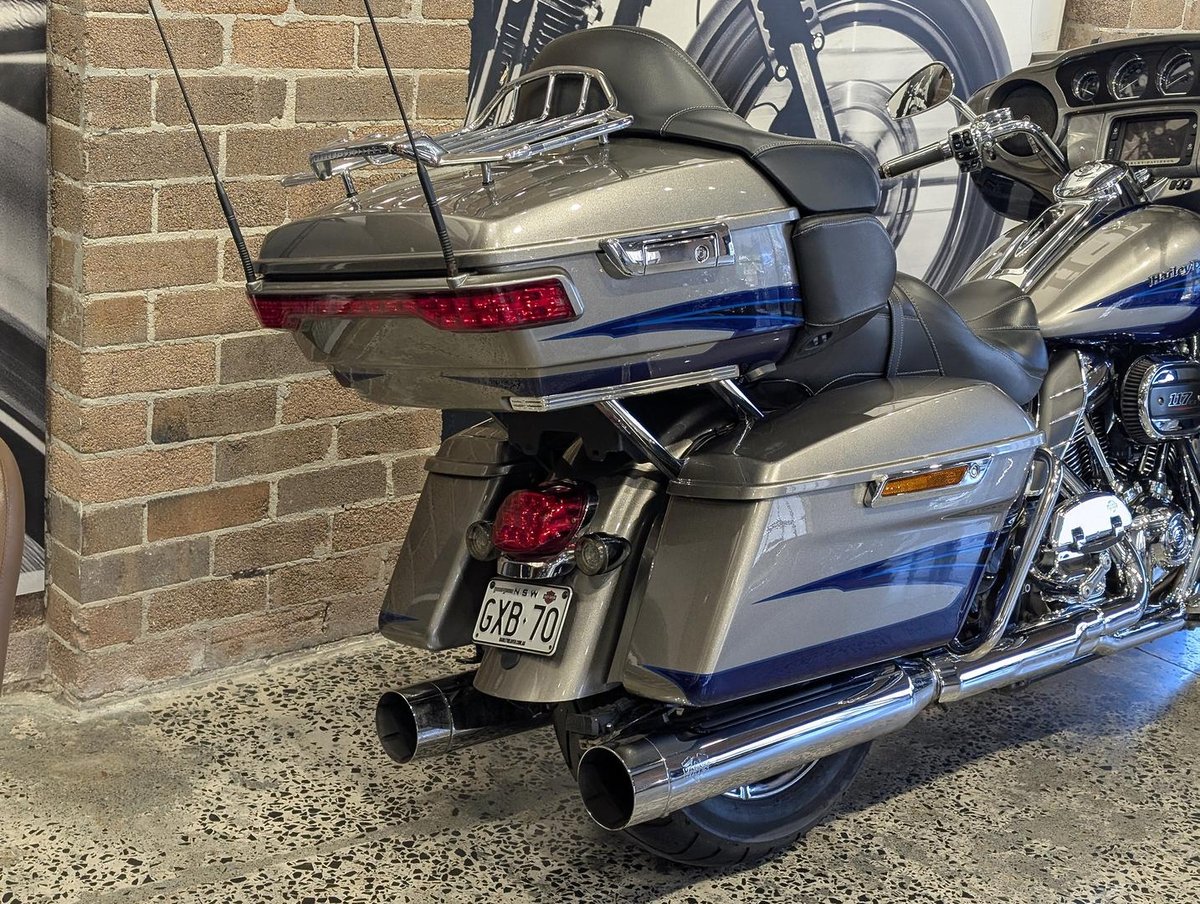

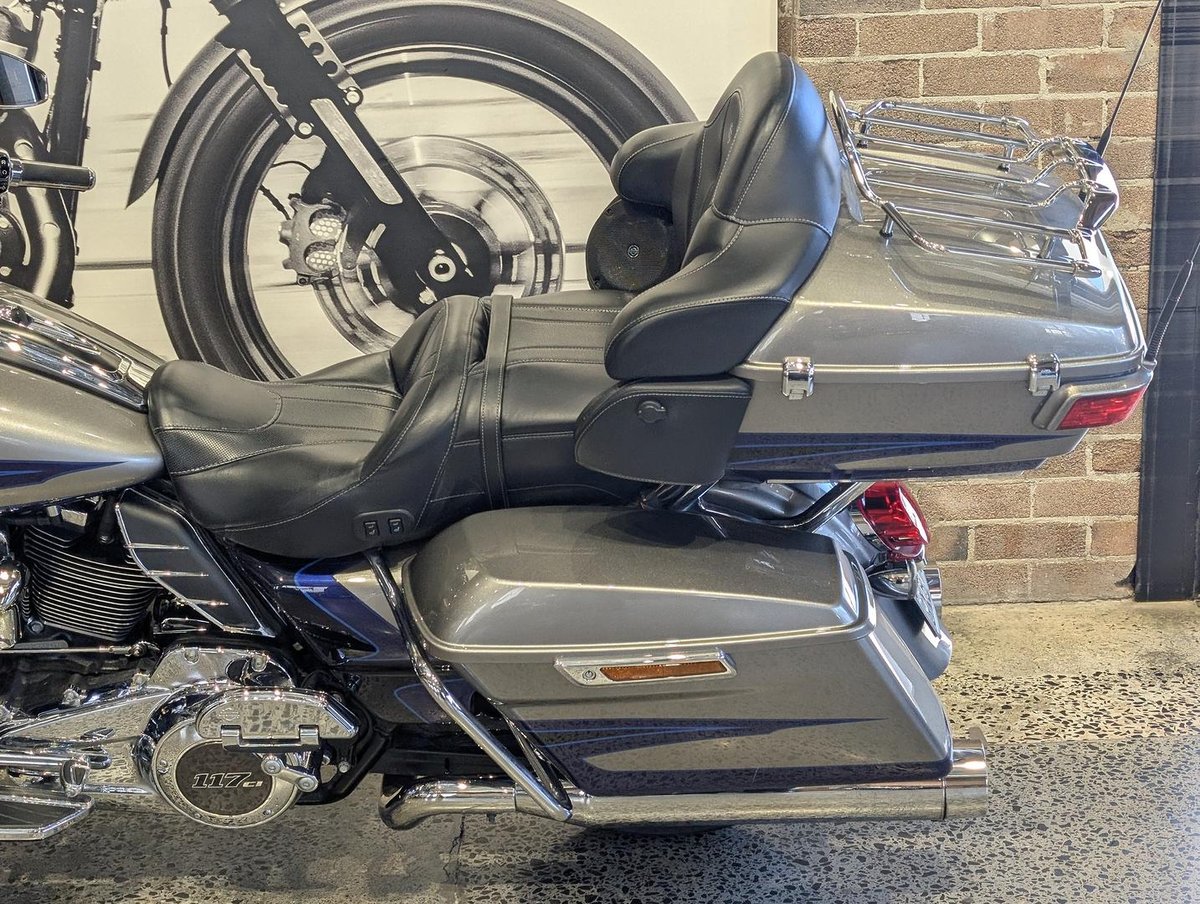

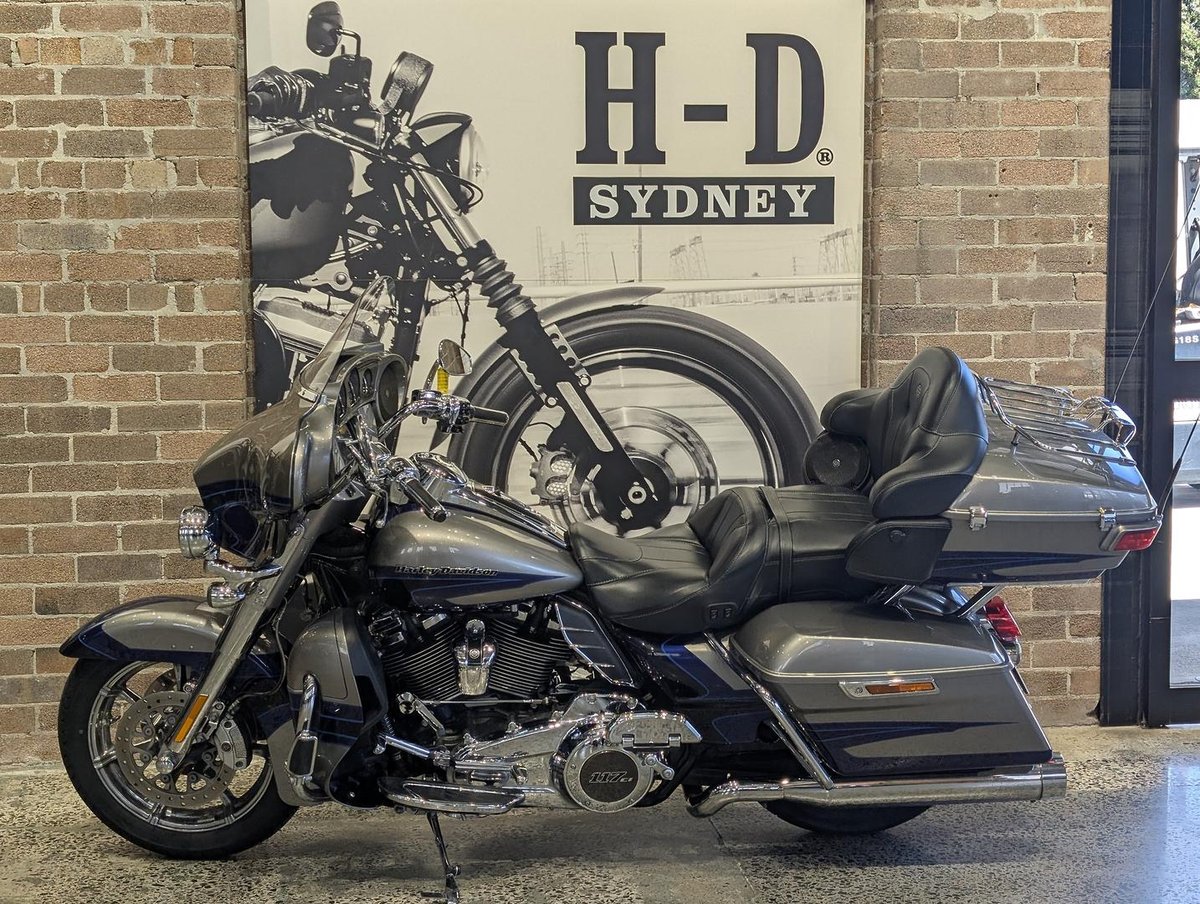

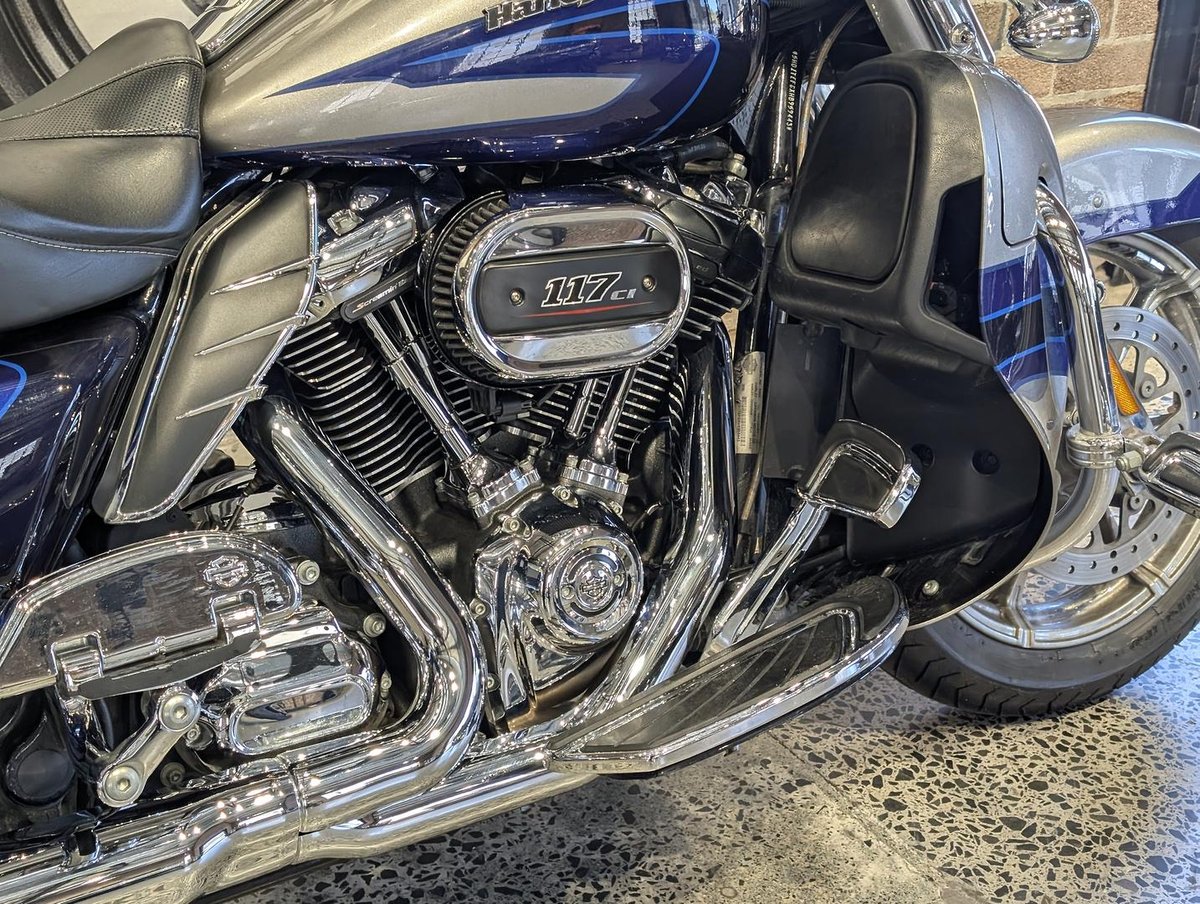

2017 Harley-Davidson CVO Limited 117 (flhtkse) Touring

Features

• EngineSize: 1923
• EngineType: Piston

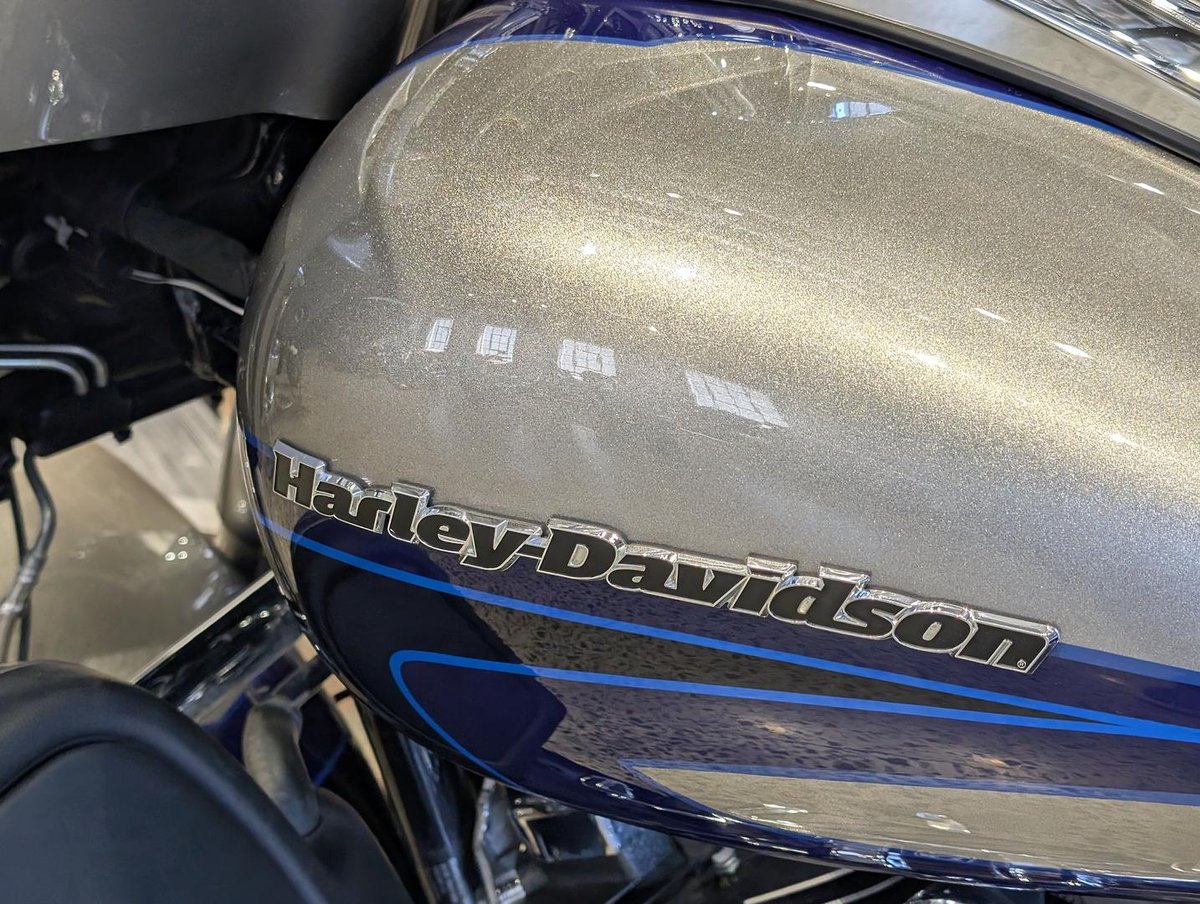

• FuelCapacity: 22.7
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Touring (1101 - 10000cc)

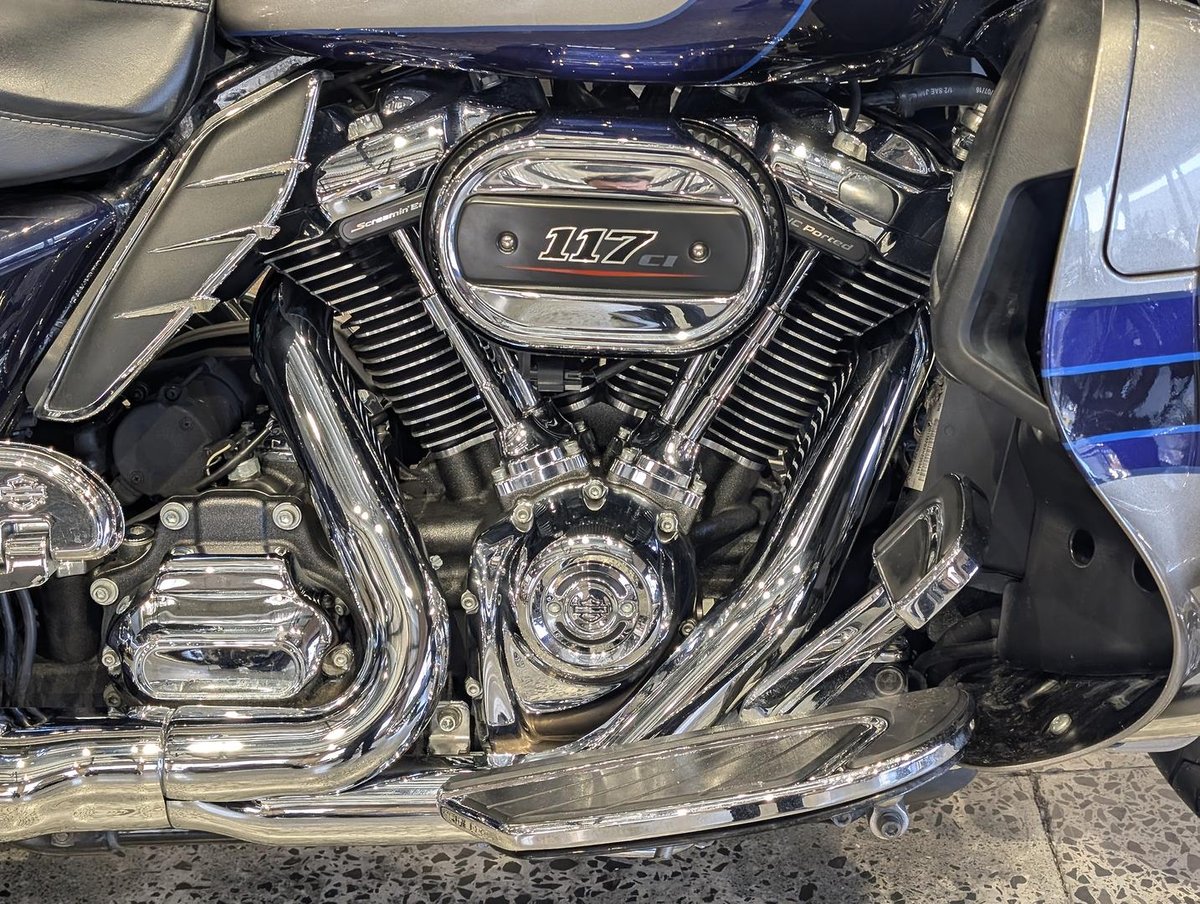

• Engine Config: V-Twin
• Engine Stroke: 4
• Bore: 103.5mm
• Stroke: 114.3mm
• Cam Type: OHV (Over Head Valves)
• Valves Per Cylinder: 4
• Compression Ratio: 10.2:1
• Induction System: Aspirated
• Carburettor: ESPFI - Electronic Sequential Port Fuel Injection
• Cooling: Liquid & Oil

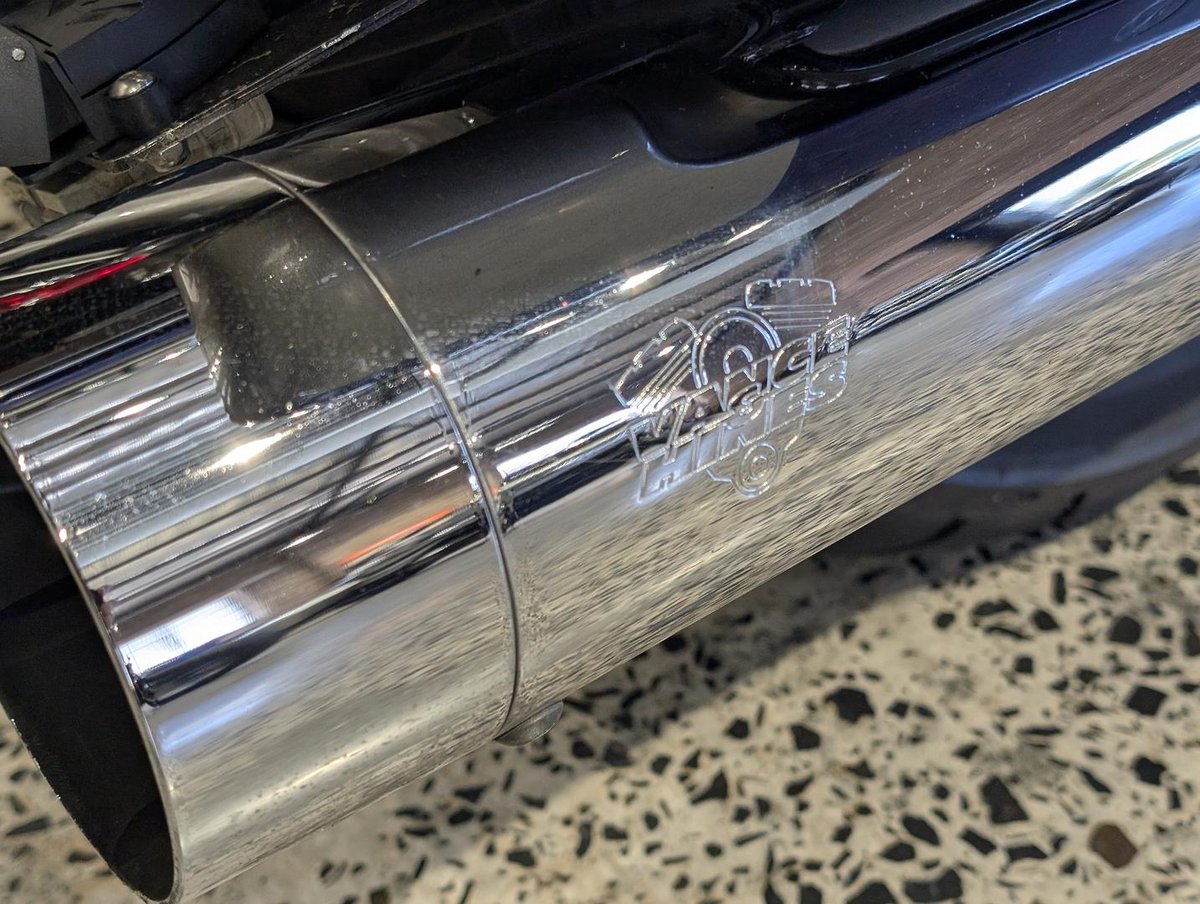

• Exhaust Description: Dual; Crossover
• Maximum Torque: 167.00Nm
• Maximum Torque RPM: 3500
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Engine
• Recommended RON: 95
• Gear Change Method: Left foot pedal; Heel & Toe Shift
• Clutch Type: Wet; 10-plate; Assist & Slip; Hydraulic operation
• Chassis Description: Two-piece stamped & welded backbone; cast & forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welding
• Side Stand: Standard
• Front Suspension: 49mm Dual Bending Valve telescopic fork
• Front Suspension Travel: 117.0mm
• Rear Suspension: Hand adjustable
• Rear Suspension Travel: 76.0mm
• Swingarm Type: Dual Sided

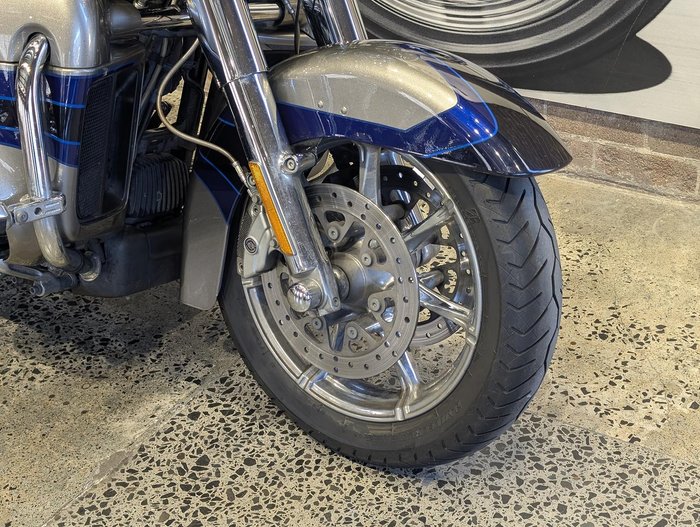

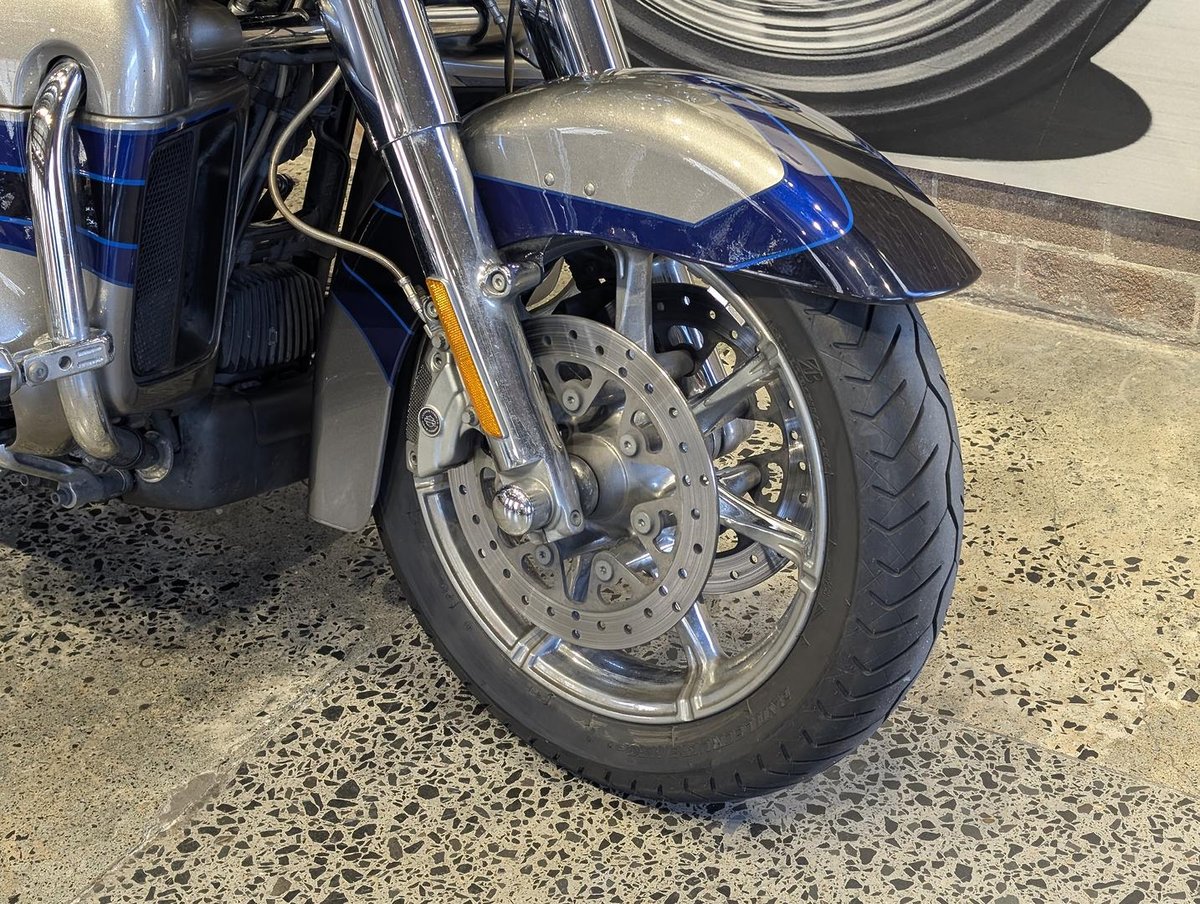

• Front Brake Description: Twin Floating rotors/discs; Fixed calipers; Hydraulic; ABS
• Front Brake Caliper(s): Four Piston
• Front Brake Diameter: 300.0mm
• Rear Brake Description: Single fixed rotor/disc; Fixed caliper; Hydraulic; ABS
• Rear Brake Caliper(s): Four Piston
• Rear Brake Diameter: 300.0mm
• ABS: Standard
• Linked Braking System: Not Available
• Wheel Type: Gloss Black; Contrast Chrome Slicer
• Wheel Size Front: 3.5x17" (89x431.8mm)
• Wheel Size Rear: 5.0x16" (127x406.4mm)
• Rear Tyre: 180/65-B16" (81H) Dunlop D407T Harley-Davidson Series; bias blackwalll
• Front Tyre: 130/80-B17" (65H) Dunlop D408F Harley-Davidson Series; Blackwall
• Length: 2600mm
• Width: 1080mm
• Height: 1440mm
• Wheelbase: 1625mm
• Seat Height: 760mm

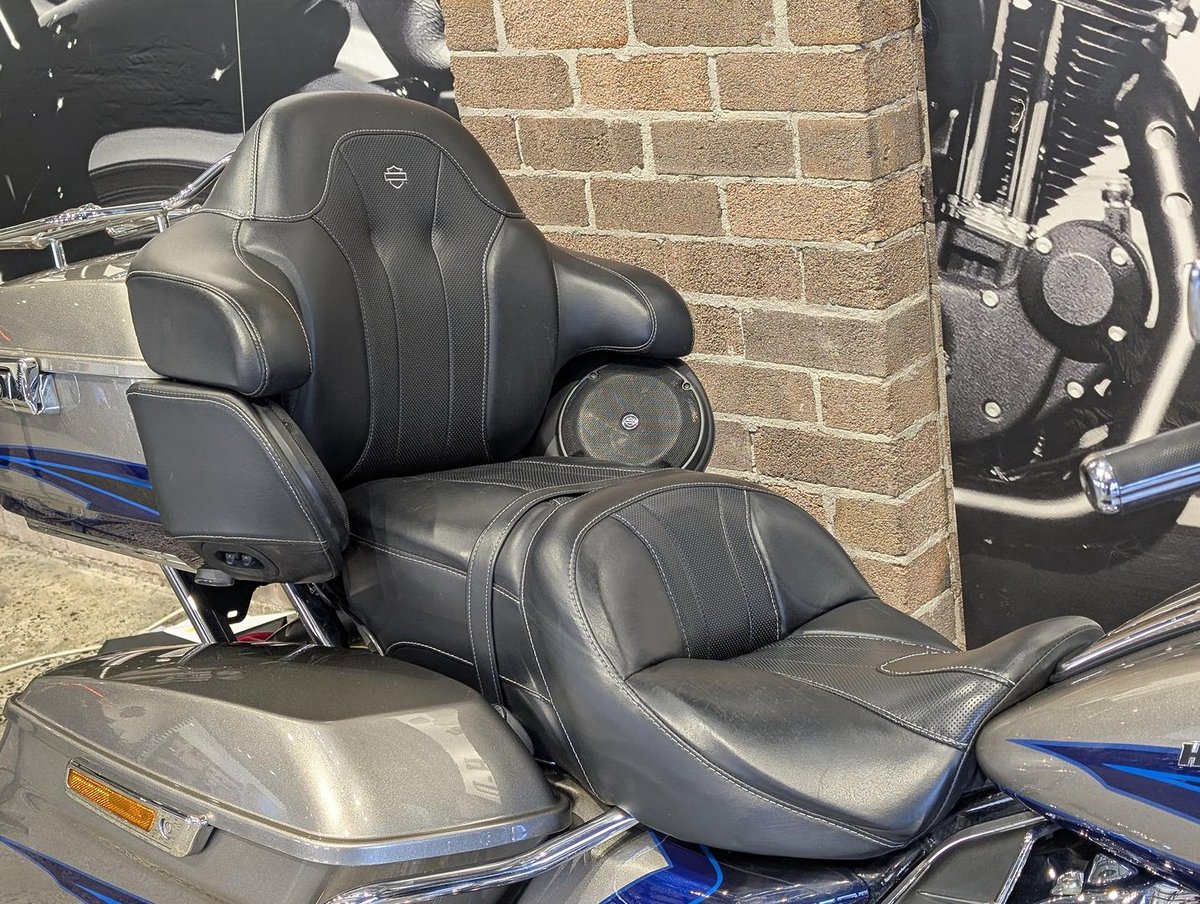

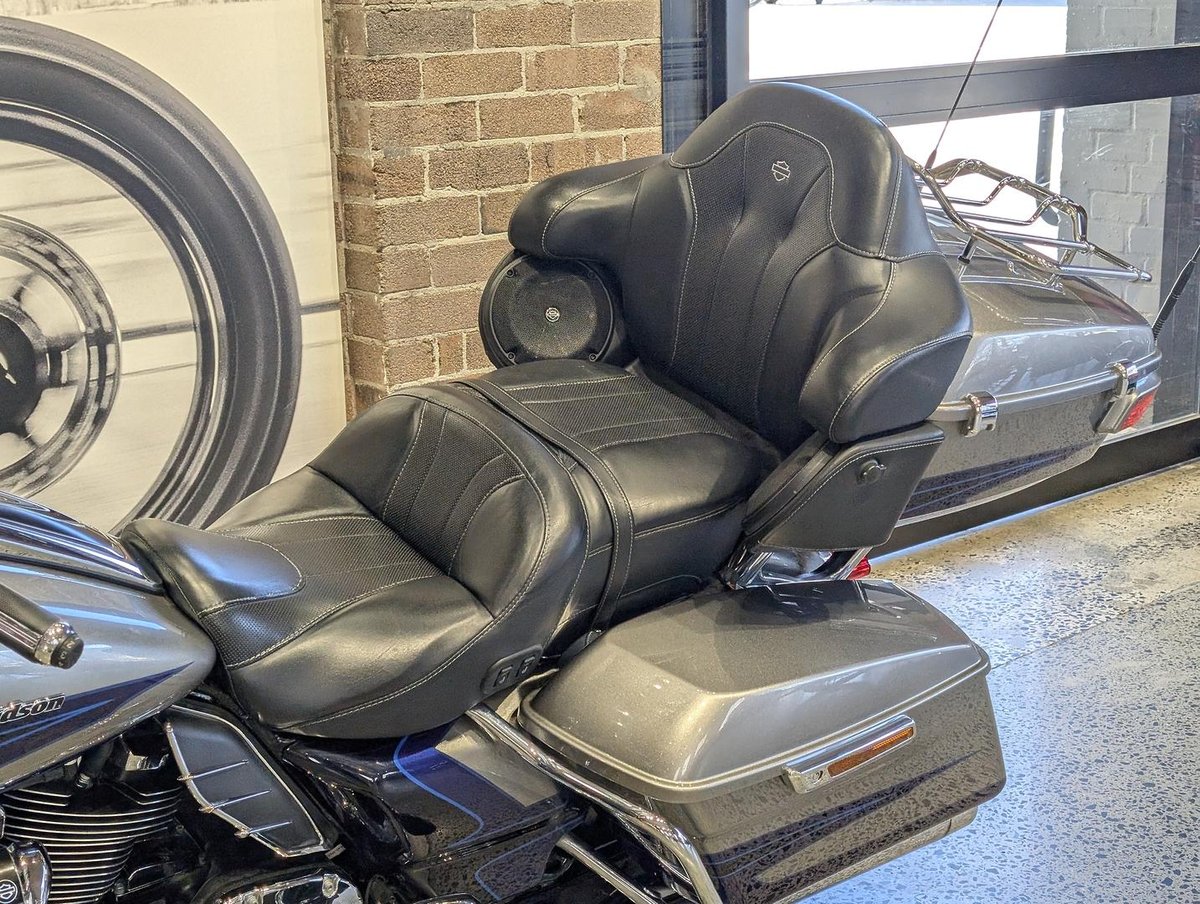

• Seating Capacity: 2
• Traction Control: Not Available

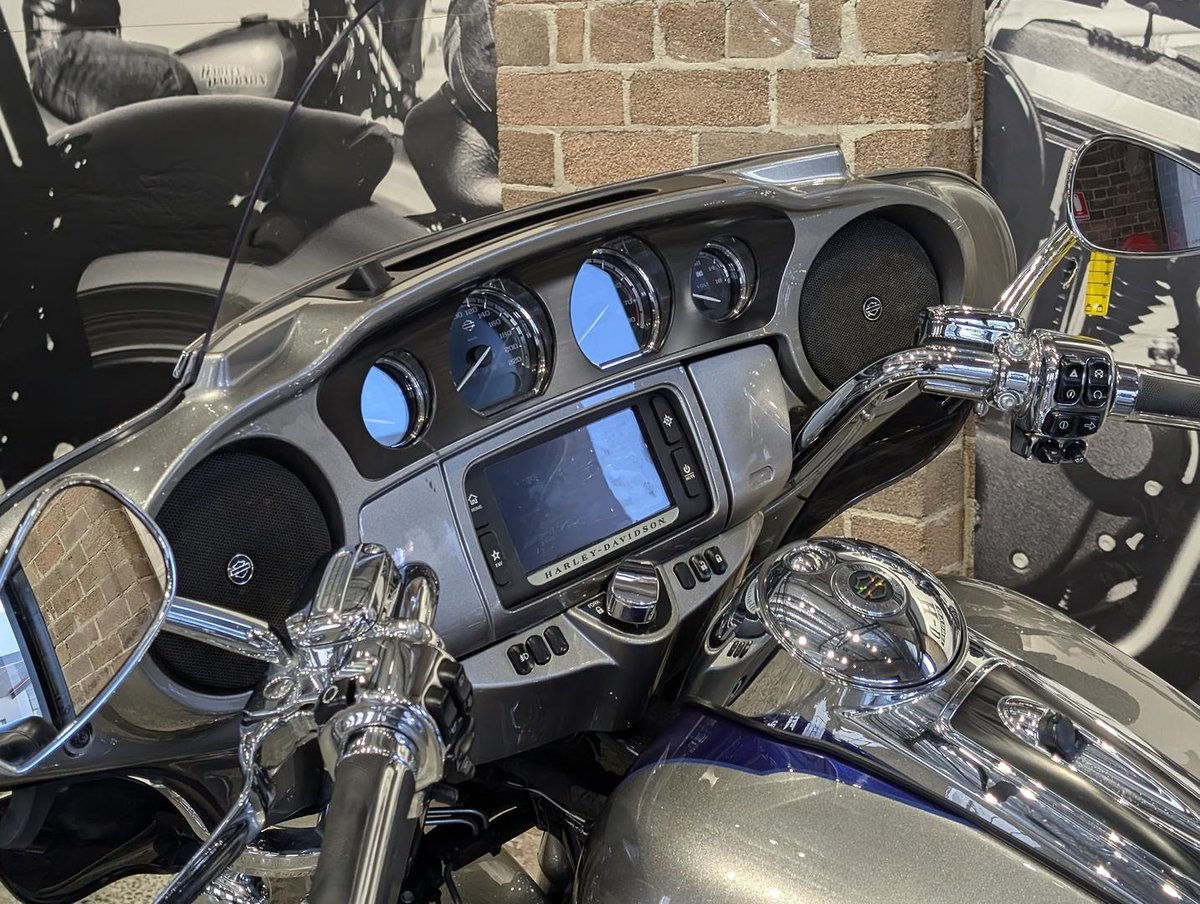

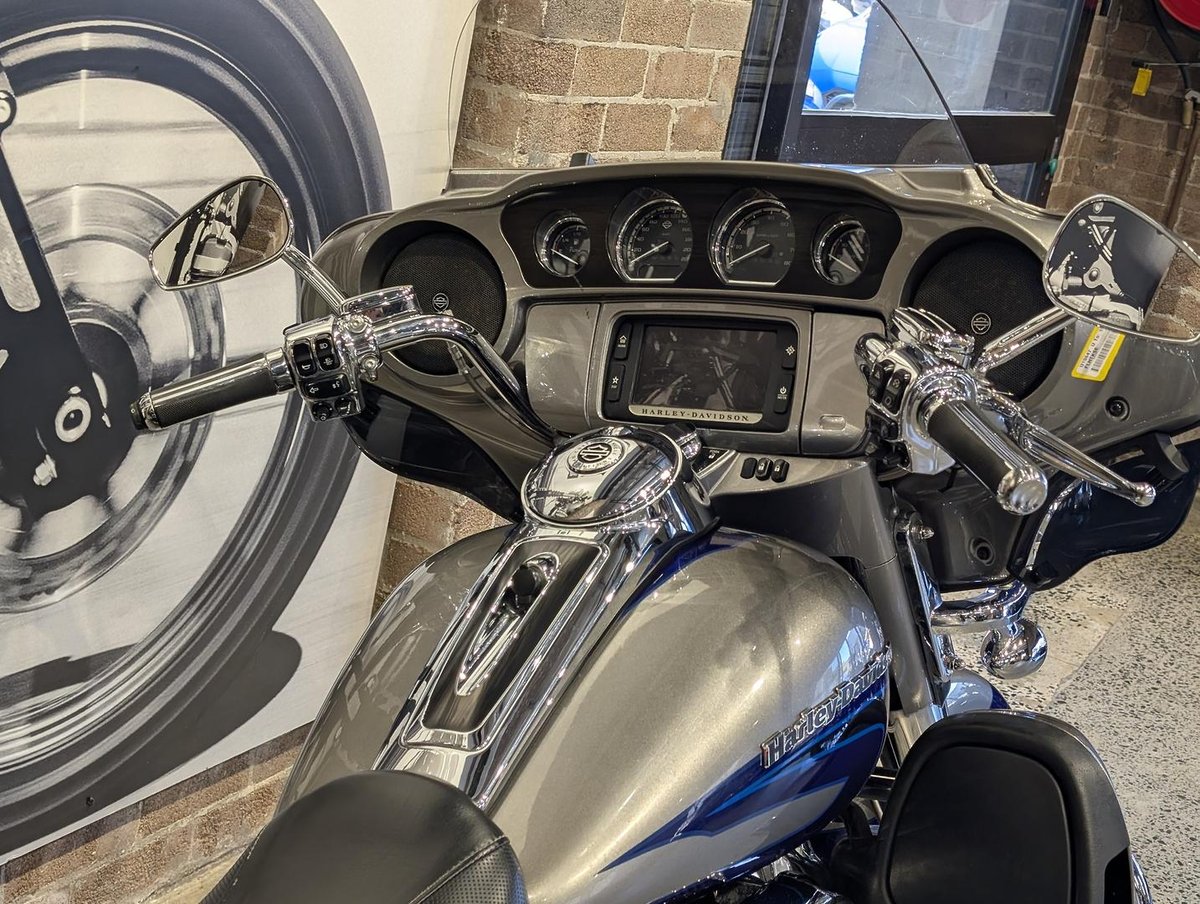

• Instruments / Dash Description: Custom gauges styled to complement each CVO vehicle. Display features odometer, 2 x trip meters, range to empty, gear indicator; larger tell-tale indicators. High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system,gear indication, battery, low fuel warning, cruise control, ABS, miles to empty display, fog/aux lamp indicator, Tyre Pressure Monitoring System indicator. New Boom! Box 6.5GT audio system with GPS & touchscreen
• Windscreen: Standard

_{Please confirm all features with dealer.}
