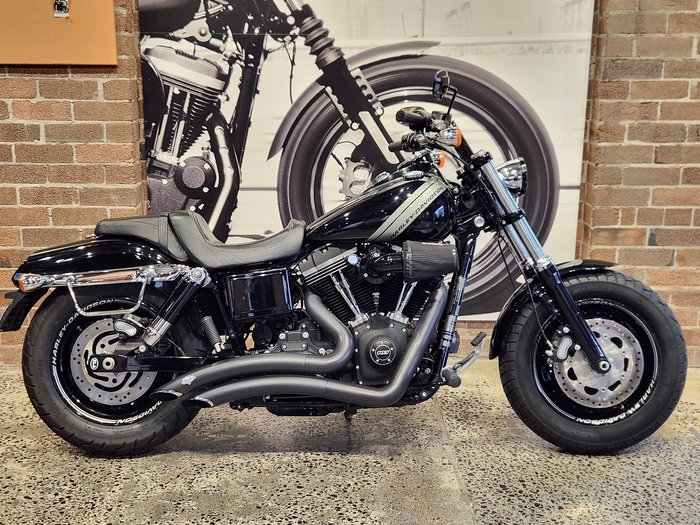

2014 Harley-Davidson Dyna Fat BOB 103 (fxdf) Dyna

Features

• EngineSize: 1690
• EngineType: Piston
• FuelCapacity: 18.9
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Cruiser (1201 - 10000cc)
• Engine Config: V-Twin
• Engine Stroke: 4
• Bore: 98.4mm
• Stroke: 111.1mm
• Cam Type: OHV (Over Head Valves)
• Valves Per Cylinder: 2
• Compression Ratio: 9.6:1
• Induction System: Aspirated
• Carburettor: ESPFI - Electronic Sequesntial Port Fuel Injection
• Cooling: Air
• Exhaust Description: Chrome; "Tommy Gun"; Dual mufflers
• Maximum Torque: 131.00Nm
• Maximum Torque RPM: 3500
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Engine
• Recommended RON: 95
• Gear Change Method: Left foot lever
• Clutch Type: Wet; Multi-disc
• Chassis Description: Tubular; rectangular section backbone; stamped, cast, forged junctions; forged fender supports; MIG welded
• Side Stand: Standard
• Front Suspension: 49mm Polished aluminium telescopic fork, triple clamp & dual-rate springs, Black lower legs
• Front Suspension Travel: 127.0mm
• Rear Suspension: Twin chrome covered, Coil-over shock absorbers; Adjustable
• Rear Suspension Travel: 55.0mm
• Swingarm Type: Dual Sided
• Front Brake Description: Twin floating, uniform expansion rotors/discs, Fixed calipers; Hydraulic operation, Independent ABS
• Front Brake Caliper(s): Four Piston
• Front Brake Diameter: 300.0mm
• Rear Brake Description: Single uniform expansion rotor, Torque-free floating caliper; Hydraulic operation, Independent ABS
• Rear Brake Caliper(s): Double Piston
• Rear Brake Diameter: 292.0mm
• ABS: Standard
• Linked Braking System: Not Available
• Wheel Type: Black; Machined aluminium slotted discs
• Wheel Size Front: 16x 3.0" (406.4x76.2mm)
• Wheel Size Rear: 16x5.0" (406.4x127mm)
• Rear Tyre: 180/70B16" ( 77H) D427, Dunlop Harley-Davidson Series, bias blackwall
• Front Tyre: 130/90B16" (67H) D427F, Dunlop Harley-Davidson Series, bias blackwall
• Length: 2400mm
• Width: 890mm
• Height: 1130mm
• Wheelbase: 1620mm
• Wet / Operational Weight: 320.00kg
• Seat Height: 690mm
• Seating Capacity: 2
• Traction Control: Not Available
• Lock Type: Fork Lock with Key (Steering Stem)
• Instruments / Dash Description: Gauges – Tank-mounted electronic speedometer with odometer, clock on odometer, 2 x trip meters, RPM/Gear display, fuel gauge with low fuel warning light & countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light

_{Please confirm all features with dealer.}
