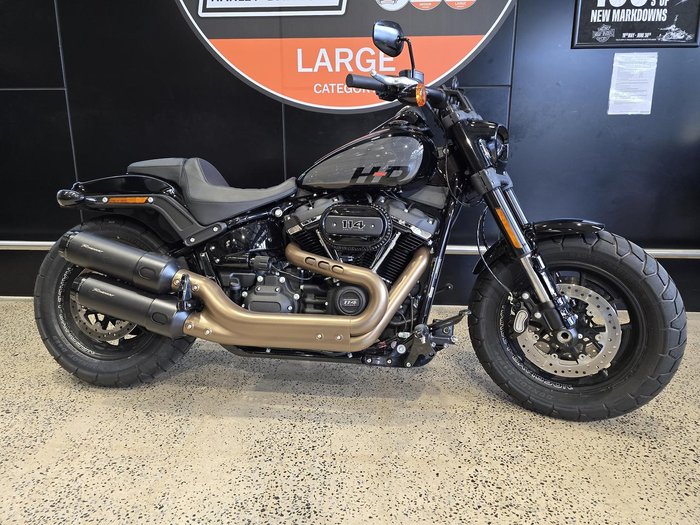

2024 Harley-Davidson Fat BOB 114 (fxfbs) Softail

Features

• EngineSize: 1868
• EngineType: Piston
• FuelCapacity: 13.6
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Cruiser (1201 - 10000cc)
• Engine Config: V-Twin
• Engine Stroke: 4
• Bore: 102.0mm
• Stroke: 114.3mm
• Cam Type: OHV (Over Head Valves)
• Valves Per Cylinder: 4
• Compression Ratio: 10.5:1
• Induction System: Aspirated
• Carburettor: ESPFI - Electronic Sequential Port Fuel Injection
• Cooling: Air & Oil
• Exhaust Description: Upswept Dual side; Catalyser
• Maximum Torque: 155.00Nm
• Maximum Torque RPM: 3000
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Alternator & Regulator-Rectifier
• Recommended RON: 95
• Gear Change Method: Left foot lever
• Clutch Type: Wet; 10-plate; Mechanical/cable operation; Assist
• Chassis Description: Rectangular section backbone; stamped, cast, & forged junctions; MIG welded; aluminum forged fender supports
• Side Stand: Standard
• Front Suspension: Single cartridge inverted fork; Triple rate springs
• Front Suspension Travel: 130.0mm
• Rear Suspension: Hidden piston free coil-over monoshock; Hydraulic preload adjustment (External hand adjustment knob)
• Rear Suspension Travel: 112.0mm
• Swingarm Type: Dual sided; Triangulated
• Front Brake Description: Twin Black Split 7-spoke floating rotor/disc; Fixed caliper; Hydraulic; ABS
• Front Brake Caliper(s): Four Piston
• Front Brake Diameter: 300.0mm
• Rear Brake Description: Single Black Split 7-spoke floating rotor/disc; Floating caliper; Hydraulic; ABS
• Rear Brake Caliper(s): Double Piston
• Rear Brake Diameter: 292.0mm
• ABS: Standard
• Wheel Type: Denim Black; Laser etched graphics; Cast aluminium
• Wheel Size Front: 3.0x16" (76x406.4mm)
• Wheel Size Rear: 5.0x16" (127x406.4mm)
• Rear Tyre: 180/70-B16" (77H) Dunlop D429 Harley-Davidson Series; bial blackwall
• Front Tyre: 150/80-16" (71H) Dunlop 429F Harley-Davidson Series; bias blackwall
• Length: 2340mm
• Width: 960mm
• Height: 1110mm
• Wheelbase: 1615mm
• Wet / Operational Weight: 306.00kg
• Seat Height: 710mm
• Seating Capacity: 2
• Traction Control: Not Available
• Instruments / Dash Description: 4" with digital speedometer, gear, odometer,fuel level, analogue tachometer indication, High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
• Windscreen: Optional

_{Please confirm all features with dealer.}
