2016 Harley-Davidson Softail Deluxe 1690 (flstn) Softail

Features

• EngineSize: 1690
• EngineType: Piston
• FuelCapacity: 18.9
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Cruiser (1201 - 10000cc)
• Engine Config: V-Twin
• Engine Stroke: 4
• Bore: 98.4mm
• Stroke: 111.1mm
• Cam Type: OHV (Over Head Valves)
• Valves Per Cylinder: 2
• Compression Ratio: 9.6:1
• Induction System: Aspirated
• Carburettor: ESPFI - Electronic Sequential Port Fuel Injection; ETC (Electronic Throttle Control)
• Cooling: Air
• Exhaust Description: Chrome, straight over/under shotgun; Dual tapered mufflers
• Maximum Torque: 136.00Nm
• Maximum Torque RPM: 3000
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Engine
• Recommended RON: 95
• Gear Change Method: Left foot pedal; Heel & Toe Shift
• Clutch Type: Wet, Multi-disc
• Chassis Description: Rectangular section backbone; stamped, cast & forged junctions; forged fender supports; MIG welded
• Side Stand: Standard
• Front Suspension: 41.3mm "beer can" covered telescopic fork
• Front Suspension Travel: 130.0mm
• Rear Suspension: Twin, Undermounted horizontal hidden shock absorbers
• Rear Suspension Travel: 86.0mm
• Swingarm Type: Dual sided; Triangulated
• Front Brake Description: Single solid uniform expansion rotor/disc; Hydraulic; ABS
• Front Brake Caliper(s): Four Piston
• Front Brake Diameter: 300.0mm
• Rear Brake Description: Single solid uniform expansion rotor/disc; Hydraulic; ABS
• Rear Brake Caliper(s): Double Piston
• Rear Brake Diameter: 292.0mm
• ABS: Standard
• Linked Braking System: Not Available
• Wheel Type: Chrome rims; Laced-spokes
• Wheel Size Front: 3.0x16" (76.2x406.4mm)
• Wheel Size Rear: 3.0x16" (76.2x406.4mm)
• Rear Tyre: MU85-B16" (77H) Wide Whitewall
• Front Tyre: MT90-B16" (72H) Wide Whitewall
• Length: 2400mm
• Width: 980mm
• Height: 1115mm
• Wheelbase: 1635mm
• Wet / Operational Weight: 333.00kg
• Seat Height: 670mm
• Seating Capacity: 2
• Traction Control: Not Available
• Lock Type: Fork Lock with Key (Steering Stem)

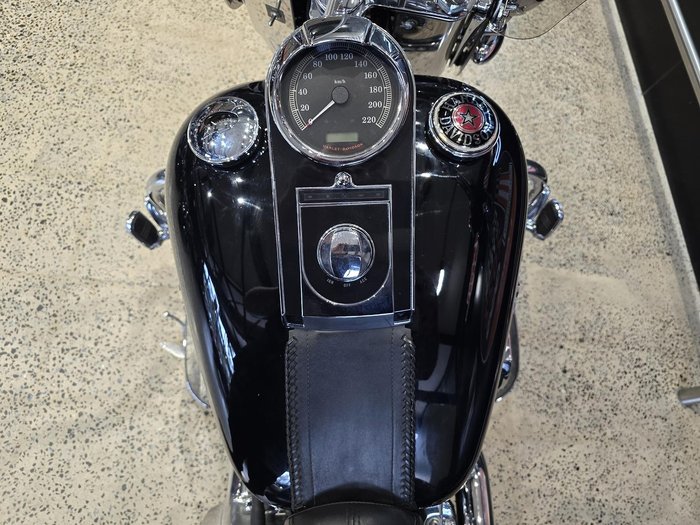

• Instruments / Dash Description: Tank-mounted electronic speedometer/odometer, clock; 2 x trip meters, RPM/gear display, fuel gauge with low fuel warning light & countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light; High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system, ABS, Cruise Control
• Seat Description: Two-piece, two-up Softail classic removable seat pillion with chrome grab rail, features collapsing sides for narrower-profile riders
• Windscreen: Optional

_{Please confirm all features with dealer.}
