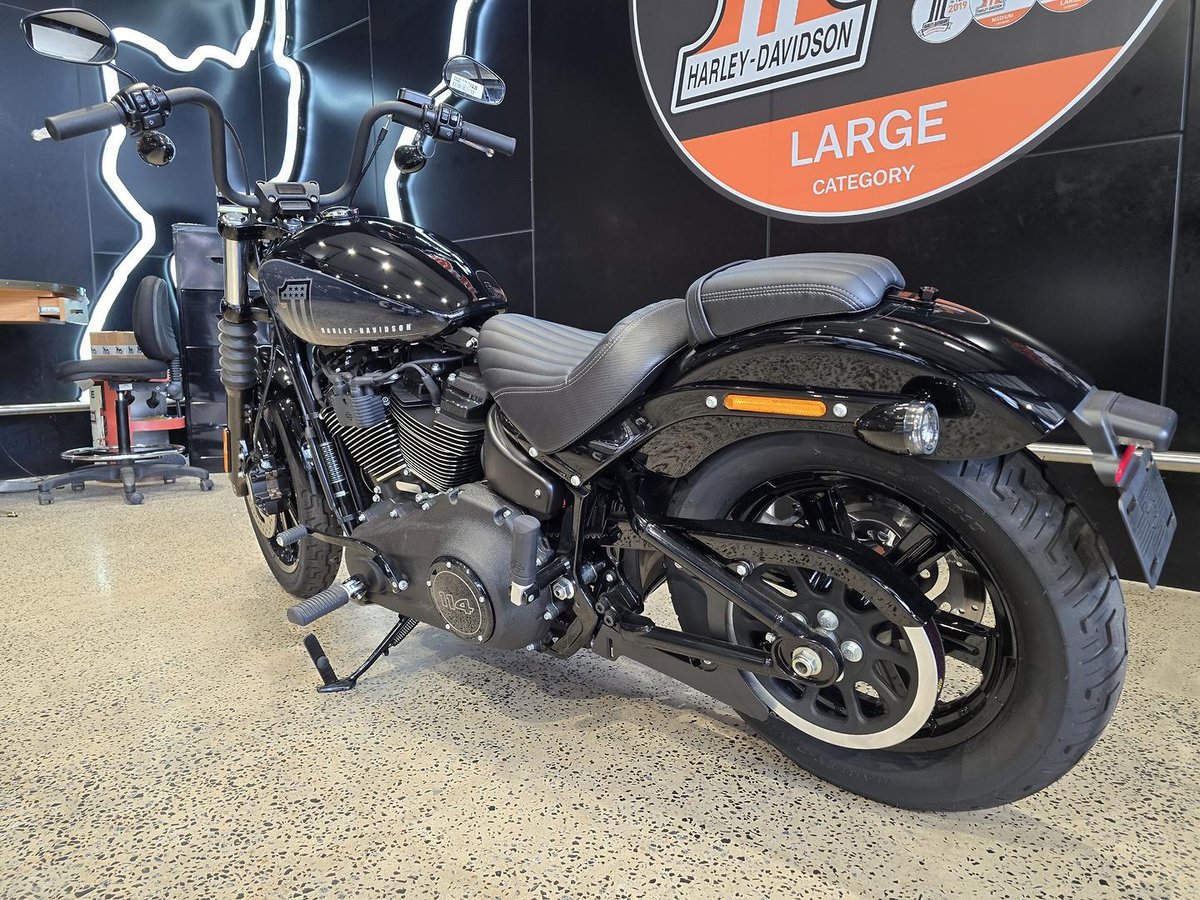

2024 Harley-Davidson Street BOB 114 (fxbbs) Softail

Features

• EngineSize: 1868
• EngineType: Piston
• FuelCapacity: 13.2
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Cruiser (1201 - 10000cc)
• Engine Config: V-Twin
• Engine Stroke: 4
• Bore: 102.0mm
• Stroke: 114.3mm
• Cam Type: OHV (Over Head Valves)
• Compression Ratio: 10.5:1
• Induction System: Aspirated
• Carburettor: ESPFI - Electronic Sequential Port Fuel Injection
• Cooling: Air & Oil
• Exhaust Description: Black; Offset shotgun; Catalyser
• Maximum Power: 69.0kW
• Maximum Power RPM: 5020
• Maximum Torque: 155Nm
• Maximum Torque RPM: 3250
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Alternator & Regulator-Rectifier
• Recommended RON: 95
• Gear Change Method: Left foot lever
• Clutch Type: Wet; 10-plate; Mechanical/cable operation; Assist
• Chassis Description: Rectangular section backbone; stamped, cast, & forged junctions; MIG welded; aluminum forged fender supports
• Side Stand: Standard
• Front Suspension: Showa Dual Bending Valve (SDBV) telescopic fork; Dual rate springs; "Beer Can" covers
• Front Suspension Travel: 130.0mm
• Rear Suspension: Hidden free piston, coil-over monoshock; Adjustable preload
• Rear Suspension Travel: 86.0mm
• Swingarm Type: Dual sided; Triangulated
• Front Brake Description: Single solid uniform expansion rotor/disc; Fixed caliper; Hydraulic (DOT 4); ABS
• Front Brake Caliper(s): Four Piston
• Front Brake Diameter: 300.0mm
• Rear Brake Description: Single solid uniform expansion rotor/disc; Floating caliper; Hydraulic; ABS
• Rear Brake Caliper(s): Double Piston
• Rear Brake Diameter: 292.0mm
• ABS: Standard
• Wheel Type: Black, Annihilator cast aluminum
• Wheel Size Front: 2.5x19" (63.5x482.6mm)
• Wheel Size Rear: 3.0x16" (76x406.4mm)
• Rear Tyre: 150/80B-16" (77H) Dunlop D401T Harley-Davidson series; bias blackwall
• Front Tyre: 100/90B-19" (57H) Dunlop D401F Harley-Davidson series; bias blackwall
• Length: 2320mm
• Width: 865mm
• Height: 1160mm
• Wheelbase: 1630mm
• Wet / Operational Weight: 297.0kg
• Seat Height: 680mm
• Seating Capacity: 1
• Traction Control: Not Available
• Instruments / Dash Description: 2.14" Viewable area, LCD Display; Digital Indicators: Speedometer, Odometer, Gear Indicator, Tachometer & Fuel Level, Dual Row of Indicators below riser clamp "dog bone" outline. High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel

_{Please confirm all features with dealer.}
